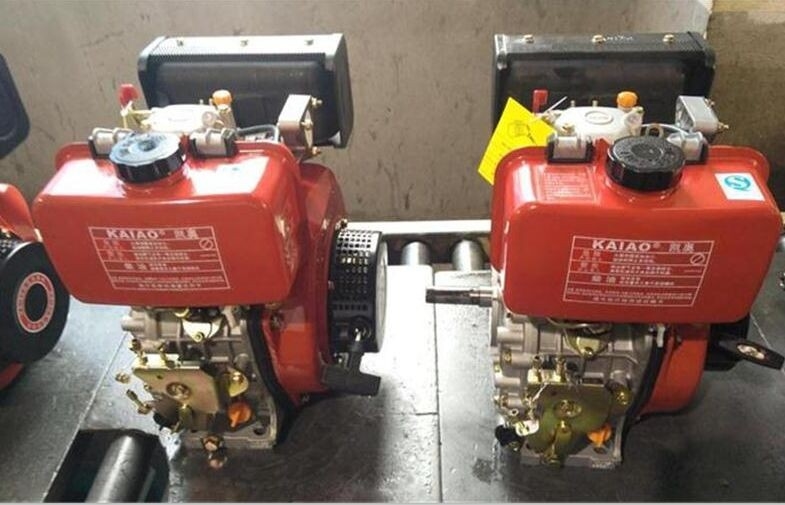

Low Noise Air Cooled Diesel Engine
Product Details:
| Place of Origin: | China |
| Brand Name: | KAIAO |
| Certification: | CE/ISO/SGS |
| Model Number: | KA170FE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cartons |
| Delivery Time: | 10 working days after received down-payment |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 20,000 pcs per month |
|
Detail Information |
|||
| Rated/Max. Power (KW): | 2.5/2.8 | Bore X Stroke (mm): | 70x55 |
|---|---|---|---|
| Displacement (cc): | 211 | Rated Speed (rpm): | 3000 |
| Compression Ration: | 20 | Starting Mode: | Electric |
| Rotation Direction: | Anticlockwise Face To Output Axle | Lubricating System: | Pressure Splashed |
| Fuel Consumption (g/kw.h): | ≤280 | Fuel Type: | 0#, -10#, -20# Diesel |
| Fuel Tank Capacity (L): | 2.5 | Lube Oil Type: | CD Grade Or SAE 10W-30, 15W-40 |
| Lube Oil Capacity (L): | 0.75 | Net Weight (KGS): | 32 |
| Highlight: | forced air cooled engine,small air cooled engines |
||
Product Description
Low Noise Air Cooled Diesel Engine
Unique Driving System
Adopted designed precise gear driving & balance shaft system to ensure more excellent performance & stable than other makers
Perfect Direct Injection
To realize the ideal match between the combustion chamber and injection system, keep maximum power from every drop of diesel, it’s extraordinarily low fuel consumption & environmentally friendly engine.
Low Vibration & Low Noise
Vibration & Noise reduction is achieved through the adopt of precision balancers. It makes operation comfort even under long working hours.
Compact Design, Quick & Easy Start
With stronger but lightweight alloy used for main engine parts, extra tough crankshaft and overall compact structure, ensure powerful and simple to install and quick & easy to start.
Application:
KAIAO air-cooled single cylinder engines could be assemble with Agricultural machines (such as Tillers), marine boats, generators & pump sets etc.
| Rated/Max. Power (KVA) | 9.5/10.5 | |
| Phase No.s | 3-phase | |
| AC Frequency (Hz) | 50 | |
| AC Output Voltage (V) | 400/230 | |
| Rated Current (A) | 13.7 | |
| DC Output (V/A) | 400/230 416/240 | |
| Engine Model | KA840 | |
| Type | Two- cylinder,Air-cooled,4-stroke Vertical,Direct injection | |
| Starting System | Electric | |
| Fuel Tank Capacity (L) | 25 | |
| Net Weight (KGS) | 185 | |
