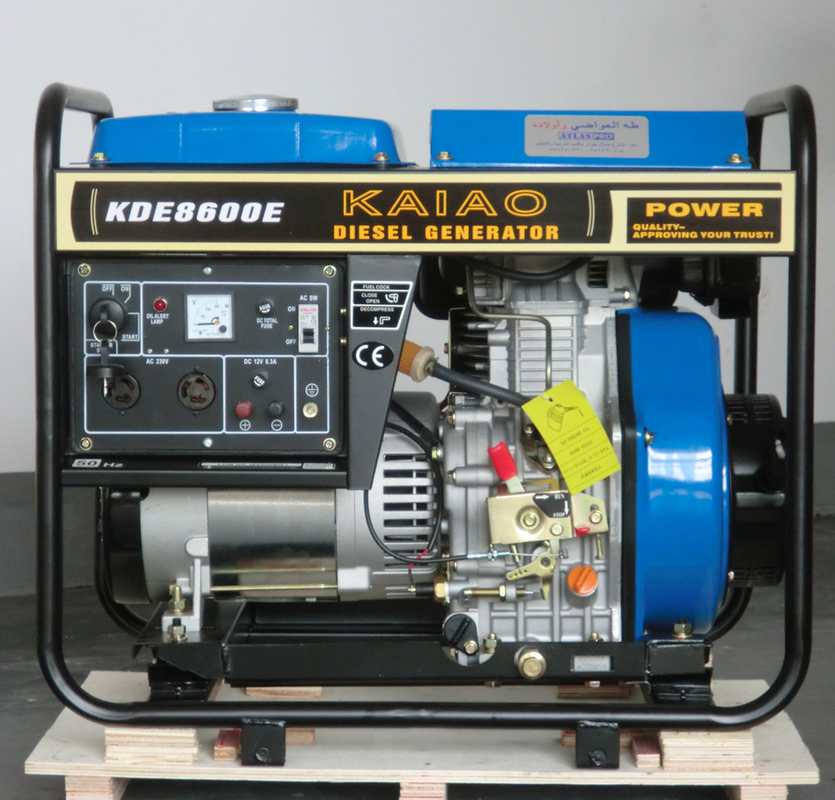

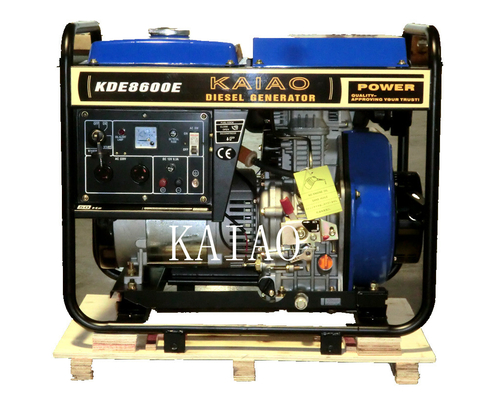

Model KDE8600E KAIAO Brand 6kw Diesel Generator Set
Product Details:
| Place of Origin: | Wuxi of China |
| Brand Name: | KAIAO |
| Certification: | CE |
| Model Number: | KDE8600E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 units |
|---|---|
| Price: | US$405.FOB.Shanghai |
| Packaging Details: | Carton Package |
| Delivery Time: | 25 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10000 units per month |
|
Detail Information |
|||
| Name: | Open Frame Diesel Generators | Frequency: | 50/60HZ |
|---|---|---|---|
| Phase: | AC Single Phase | Rated Power: | 6KW |
| Max Power: | 6.5KW | Voltage: | 220/230V |
| Engine Speed: | 3000/3600rpm | Structure: | Open |
| Noise Level: | 77dB(A) | Dimension: | 760*51560*710mm |
| Highlight: | kaiao 6kw diesel generator set,kde8600e 6kw diesel generator set,kaiao 6kw diesel genset |
||
Product Description
6KW Diesel Generator Set model KDE8600E KAIAO brand
Product Application
Diesel generator is wildly used as prime power or standby power,which is supply in national denfence, telecommunication, fieldwork,building, supermarket, industrial and mining factory, oil field, highway, harbour, countryside and so on.
| WUXI KAIAO POWER MACHINERY CO., LTD | ||
| 6KW Diesel generator KDE8600E | ||
| Model | KDE8600E | |
| Frequency (Hz) | 50 | 60 |
| Output power (KVA) | 6 | 6.5 |
| Max. Power(KVA) | 6.5 | 7 |
| Voltage (V) | 115/230 | 120/240 |
| Current (A) | 52.1/26.1 | 54.1/27.1 |
| Engine speed (r/min) | 3000 | 3600 |
| Phase | Single | |
| Power factor(cosφ) | 1 | |
| Excitation system | Self-excited constant voltage | |
| Noise level (7m) | DB (A): 77 | |
| Fuel tank capacity (L) | 12.5 | |
| Structure | Open-frame | |
| Panel | Ordinary | |
| Outputsocket | Two | |
| DC12V output | Terminal post | |
| Engine Model | KA188FE | |
| Bore*stroke (mm) | 88 *75 | |
| Displacement (L) | 0.45 | |
| Power (KW) | 7.7/3000 | 8.3/3600 |
| Fuel consumption rate (g. KW/h) | 290 | 295 |
| Compression ratio | 19 | |
| Lubrication system | Spring | |
| Engine starting system | Electric starter | |
| Diesel oil model | Summer: 0#, winter: -10# | |
| Lube oil model | SAE10W-30 (above CD grade) | |
| Lube oil capacity (L) | 1.65 | |
| Battery capacity(V-AH) | 12V-36Ah | |
| Net weight(KG) | 105 | |
| Dimension(L*W*H) | 760×515×710 | |
1.Q:Are you a factory or trading company?
A: We are a factory.
2.Q:Where is your factory located?
A: Our factory is in Taizhou City, Zhejiang Province, China.
It's near Ningbo & Shanghai port.
It's about 15minutes from Luqiao air port by car, 45 minutes from Wenlin train station by car.
3.Q:What is the material of your products
A: Iron,Steel,plastic,etc.
4.Q:How about quality control in your factory?
A:"Quality is first, Customers are friends".
Taizhou Belten people are always paying great attentions to quality controlling from the beginning to the end. Every piece of goods is tested strictly one by one before packing.
We keep goods to meet the standard of CE,CCC, ISO9001:2000.
5.Q:How about guarantee?
A: It's within three months after goods is discharged in the destination.
During that period,if some breakdown easily spare parts need to change,my factory offers free.
For example, fuel cock,spark plug,starting hand,etc.
