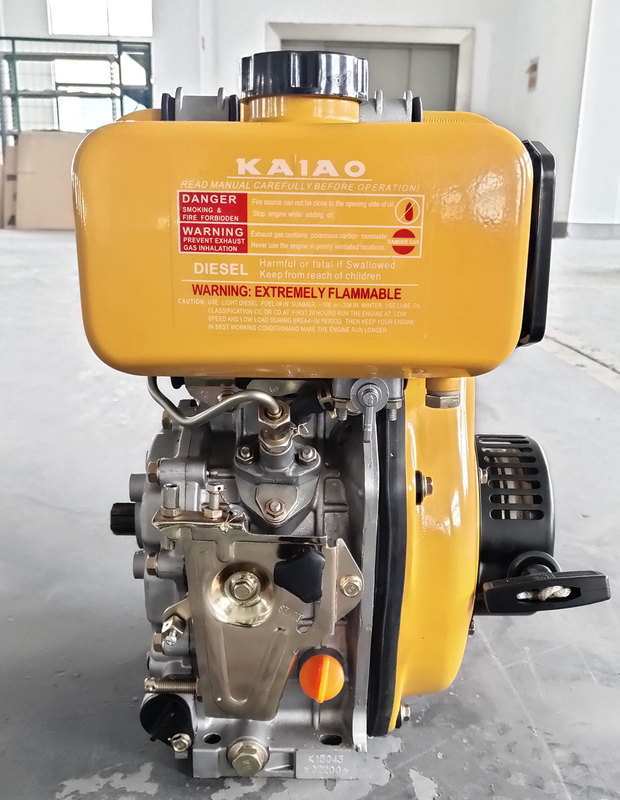

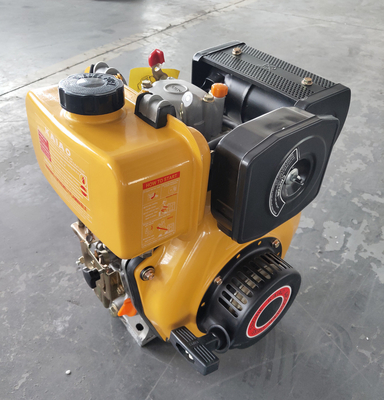

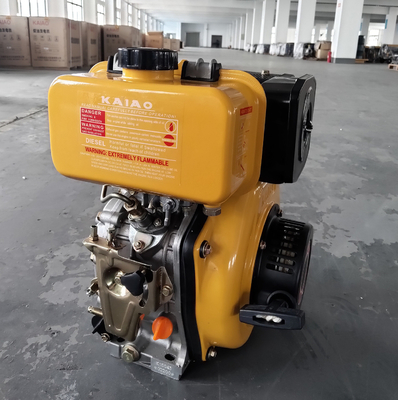

4hp Ka170f Yellow Kaiao Diesel Engine
Product Details:
| Place of Origin: | China |
| Brand Name: | KAIAO |
| Certification: | CE/ISO/SGS |
| Model Number: | 170F |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cartons |
| Delivery Time: | 10 working days after received down-payment |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 20,000 pcs per month |
|
Detail Information |
|||
| Rated/Max. Power (KW): | 2.5/2.8 | Bore X Stroke (mm): | 70x55 |
|---|---|---|---|
| Displacement (cc): | 211 | Rated Speed (rpm): | 3000 |
| Compression Ration: | 20 | Starting Mode: | Manual |
| Lubricating System: | Pressure Splashed | Fuel Consumption (g/kw.h): | ≤280 |
| Fuel Type: | 0#, -10#, -20# Diesel | Fuel Tank Capacity (L): | 2.5 |
| Lube Oil Capacity (L): | 0.75 | Net Weight (KGS): | 27 |
| Highlight: | 4hp kaiao diesel engine,ka170f kaiao diesel engine,ka170f 4hp diesel engine |
||
Product Description
4Hp KA170F Air Cooled Diesel Engines , Small Diesel Engines For Boats / Tillers
Unique Driving System
Adopted designed precise gear driving & balance shaft system to ensure more excellent performance & stable than other makers
Perfect Direct Injection
To realize the ideal match between the combustion chamber and injection system, keep maximum power from every drop of diesel, it’s extraordinarily low fuel consumption & environmentally friendly engine.
Low Vibration & Low Noise
Vibration & Noise reduction is achieved through the adopt of precision balancers. It makes operation comfort even under long working hours.
Compact Design, Quick & Easy Start
With stronger but lightweight alloy used for main engine parts, extra tough crankshaft and overall compact structure, ensure powerful and simple to install and quick & easy to start.
Application:
KAIAO air-cooled single cylinder engines could be assemble with Agricultural machines (such as Tillers), marine boats, generators & pump sets etc.
| WUXI KAIAO POWER MACHINERY CO., LTD | |
| Model | KA170F |
| Rated output(HP/rpm) | 3.4HP/3000rpm 3.8HP/3600rpm |
| Rated output(KW/rpm) | 2.5KW/3000rpm 2.8KW/3600rpm |
| Engine type | Single cylinder, vertical, four-stroke, air-cooled, direct injection |
| Diameter*stroke(mm) | 70X55 |
| Piston displacement (L) | 0.211 |
| Compression ratio | 20 |
| Rated speed(rpm) | 3000/3600 |
| Max. no-load speed(r/min) | 108% of Rated rotary speed |
| Min. no-load speed(r/min) | 1300 |
| Lubrication system | Pressure splash Type |
| Engine starting system | Recoil starter or Electric starter |
| Output terminal rotation | AnticlockWise |
| Fuel oil model | Summer:0#, Winter:-10# |
| Fuel tank capacity (L) | 2.5 |
| Fuel consumption rate(g/kW.h) | 280.2/3000 288.3/3600 |
| Oil consumption rate(g/kW.h) | 4.08 |
| Oil grade | CD grade or SAE10W-30,15W-40 |
| Valve clearance(cold state) mm | 0.10-0.15 |
| Lube oil capacity (L) | 0.75 |
| Starting motor (V,kW) | 12V 0.8kW |
| Charging generator(V,A) | 12V 3A |
| Battery capacity(V,AH) | 12V-24AH-36AH |
| Dimension (L*W*H)(mm) | 450*390*480 |
| Net weight(kg) | 27 |
