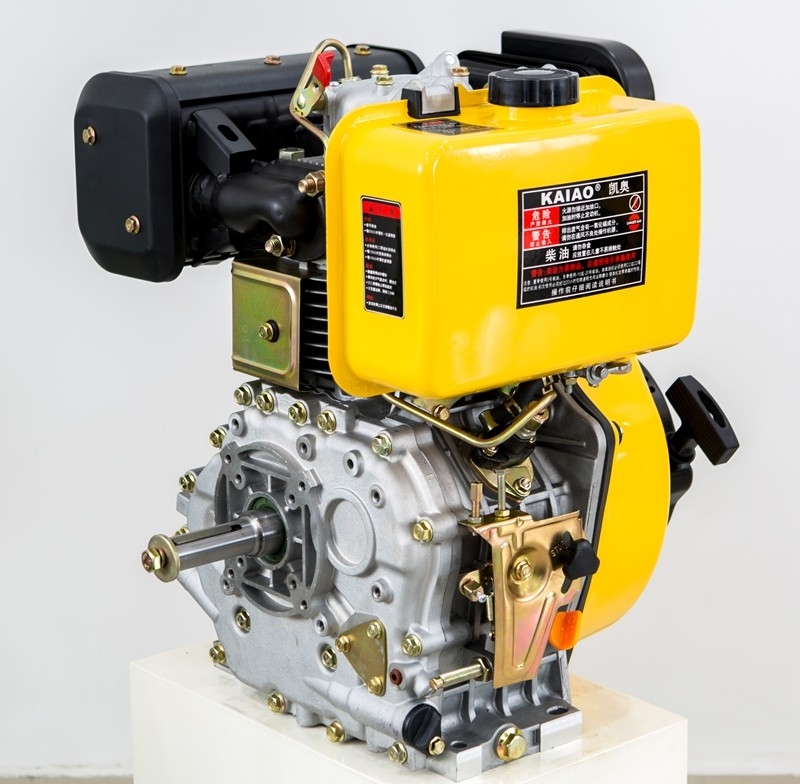

4hp Ka170f Small Air Cooled Diesel Engine For Boats / Tillers
Product Details:
| Place of Origin: | China |
| Brand Name: | KAIAO |
| Certification: | CE/ISO/SGS |
| Model Number: | KA170F |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cartons |
| Delivery Time: | 7 working days after received down-payment |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 10,000 pcs per month |
|
Detail Information |
|||
| Displacement (cc): | 211 | Rated Speed (rpm): | 3000 |
|---|---|---|---|
| Compression Ration: | 20 | Starting Mode: | Manual |
| Lubricating System: | Pressure Splashed | Fuel Consumption (g/kw.h): | ≤280 |
| Fuel Type: | 0#, -10#, -20# Diesel | Fuel Tank Capacity (L): | 2.5 |
| Lube Oil Capacity (L): | 0.75 | Net Weight (KGS): | 27 |
| Highlight: | ka170f small air cooled diesel engine,boats 4hp air cooled diesel engine,small air cooled diesel engine 4hp |
||
Product Description
4Hp KA170F Air Cooled Diesel Engines For Boats / Tillers
Type
4-stroke, single-cylinder
air-cooled, direct injection
Displacement(cc)211296406499Max.power(kw)2.84.06.38.2Rated speed(RPM)3000/3600Bore*stroke70*5578*6286*7086*72Compression ratio20:119:1Ignition systemCompression CombustionStarting systemRecoil/ Electric startingFuel tank volume(L)2.53.55.5Mass(kg)27334849Size(L*W*H)(mm)
455*375*490
485*450*520
520*520*56520GP33026018040HQ640500350
Low Vibration & Low Noise
Vibration & Noise reduction is achieved through the adopt of precision balancers. It makes operation comfort even under long working hours.
Compact Design, Quick & Easy Start
With stronger but lightweight alloy used for main engine parts, extra tough crankshaft and overall compact structure, ensure powerful and simple to install and quick & easy to start.
Unique Driving System
Adopted designed precise gear driving & balance shaft system to ensure more excellent performance & stable than other makers
Perfect Direct Injection
To realize the ideal match between the combustion chamber and injection system, keep maximum power from every drop of diesel, it’s extraordinarily low fuel consumption & environmentally friendly engine.
Application:
KAIAO air-cooled single cylinder engines could be assemble with Agricultural machines (such as Tillers), marine boats, generators & pump sets etc.
