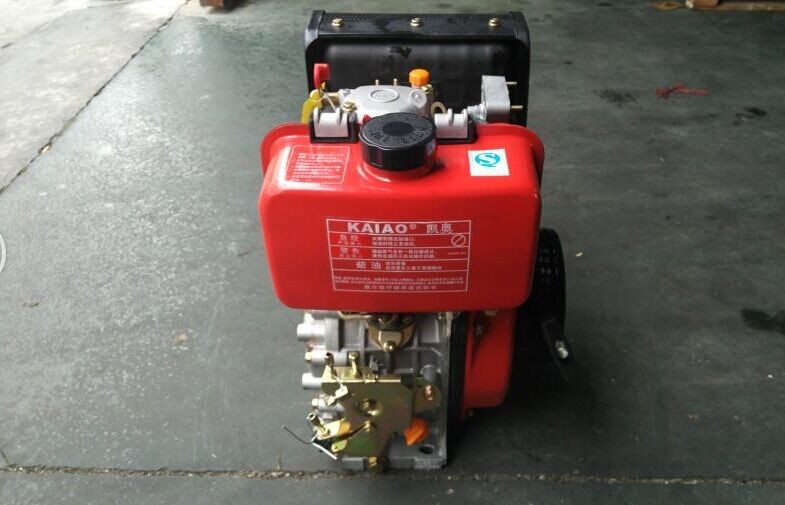

Unique Driving System Air Cooled Diesel Engine High Speed 4000 Watt 1800rpm
Product Details:
| Place of Origin: | China |
| Brand Name: | KAIAO |
| Certification: | CE/ISO/SGS |
| Model Number: | KA178FS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cartons |
| Delivery Time: | 10 working days after received down-payment |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 20,000 pcs per month |
|
Detail Information |
|||
| Bore X Stroke (mm): | 78x62 | Name: | Air Cooled Diesel Engine |
|---|---|---|---|
| Fuel Type: | 0#, -10#, -20# Diesel | Lube Oil Type: | CD Grade Or SAE 10W-30, 15W-40 |
| Lube Oil Capacity (L): | 1.1 | Net Weight (KGS): | 33 |
| Starting System: | Manual | Rate Power/Max Power(kw): | 4/4.4 |
| Highlight: | Air Cooled Diesel Engine High Speed,Unique Driving System air cooled engines,4000 Watt Air Cooled Diesel Engine |
||
Product Description
Unique Driving System Air Cooled Diesel Engine High Speed 4000 Watt 1800rpm
| structure | frame type, four small wheel |
| Rated power | 7KW |
| Maximum power | 8KW |
| Rated frequency | 50Hz |
| Rated voltage | 220V |
| Excitation mode | Brush |
| Fuel tank capacity / working time | 12L/5.5 hours |
| Engine type | RZ192FA/E |
| Engine type | single cylinder four stroke air cooling |
| Bore * stroke | 92 * 75 |
| Displacement | 498cc |
| Fuel model | summer 0#, winter -10# |
| Lubricating oil type | SAE15W/30 |
| Lubricating oil capacity | 1.65L |
| Starting mode | hand pull start / electric start |
| Battery capacity | 20Ah |
| Unit size | 720 x 500 x 630(mm) |
| Packing size | 745 x 520 x 655 (carton) |
| Net weight / gross weight | 96/101 |
Unique Driving System
Adopted designed precise gear driving & balance shaft system to ensure more excellent performance & stable than other makers
Perfect Direct Injection
To realize the ideal match between the combustion chamber and injection system, keep maximum power from every drop of diesel, it’s extraordinarily low fuel consumption & environmentally friendly engine.
Low Vibration & Low Noise
Vibration & Noise reduction is achieved through the adopt of precision balancers. It makes operation comfort even under long working hours.
Compact Design, Quick & Easy Start
With stronger but lightweight alloy used for main engine parts, extra tough crankshaft and overall compact structure, ensure powerful and simple to install and quick & easy to start.
Application:
KAIAO air-cooled single cylinder engines could be assemble with Agricultural machines (such as Tillers), marine boats, generators & pump sets etc.
Q: Are you trading company or manufacturer ?
A: We are factory
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
