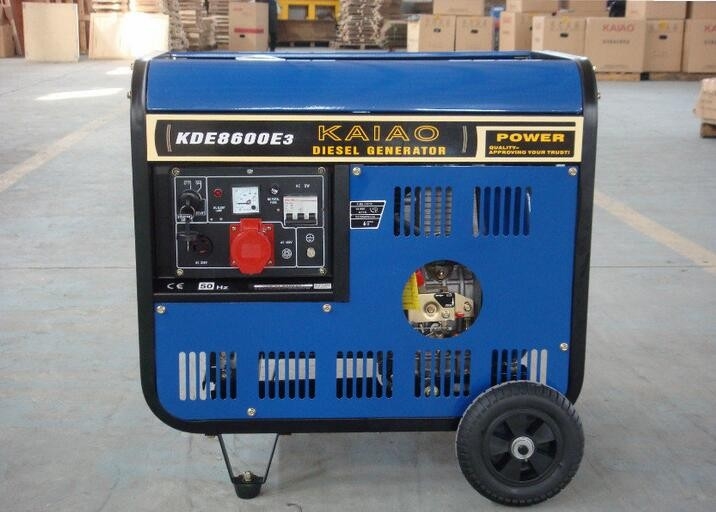

Open Frame Electric Start Diesel Generator With Kaiao Air-Cooled Engines
Product Details:
| Place of Origin: | China |
| Brand Name: | KAIAO |
| Certification: | CE/ISO/SGS |
| Model Number: | KDE8600X3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Cases |
| Delivery Time: | 25 working days after received down-payment |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 1,000 pcs per month |
|
Detail Information |
|||
| Rated/Max. Power (KW): | 8/8.5 | Phase No.s: | 3-phase |
|---|---|---|---|
| AC Frequency (Hz): | 60 | AC Output Voltage (V): | 240/416 |
| Rated Current (A): | 11.1 | DC Output (V/A): | Terminal Post |
| Engine Model: | KA188F | Type: | Single- Cylinder,Air-cooled,4-stroke Vertical,Direct Injection |
| Starting System: | Recoil | Fuel Tank Capacity (L): | 12.5 |
| Net Weight (KGS): | 95 | Dimension(L*W*H): | 760×515×710 |
| Highlight: | Open Frame Electric Start Diesel Generator,Open Type Diesel Generator,Air-Cooled Engines Diesel Generator |
||
Product Description
Open Frame Electric Start Diesel Generator With Kaiao Air-Cooled Engines
Powerful
All generators are equipped with KAIAO air-cooled Diesel engines;
Control Panel
All control units are set on one panel and Digital control panel is optional which will display the running data including output voltage, current, running hours etc.
Low oil alarm system
Before the fuel level drops to the limited level, the generator will stop automatically and it can be restarted only if the fuel is refilled.
Application of AVR
The AVR (Automatic Voltage Regulator) can ensure the output to be smooth and provide reasonable protection against the overload of the generator to avoid damage the set.
Advanced Alternator
100% copper wire, waveform distortion is kept at a Min. level and the output is stable.
ATS System
The ATS system (Automatic Transfer Switch) will give commands to start the genset automatically if the Mains Power fails or the voltage & frequency of the mains power become abnormal. As the mains power is restored, ATS shifts the load back to the mains power and shuts down the genset.
Competitive Advantage:
Advanced R&D team, Years of Design & Production of engines, Complete quality control system & after-sale services to ensure high level quality & performance price ratio gensets, easy to maintenance.
