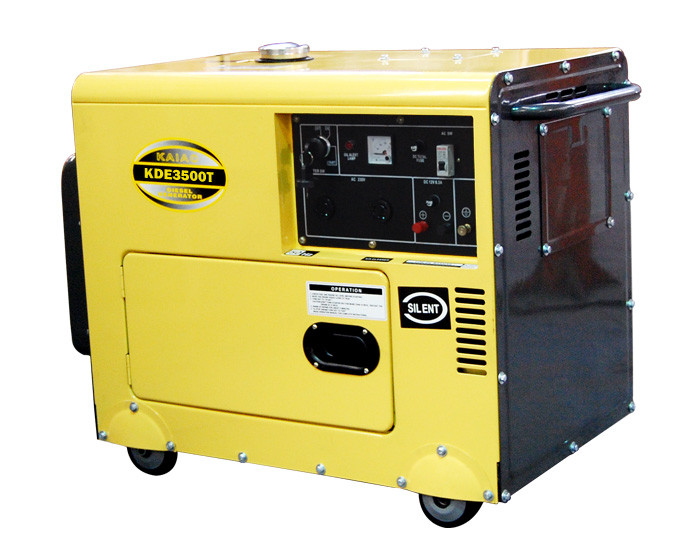

Commercial 3kva Low Noise Small Diesel Generators Electric Starting System
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | KAIAO |
| Certification: | CE/ISO/SGS |
| Model Number: | KDE3500T3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Cases |
| Delivery Time: | 25 working days after received down-payment |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 1,000 pcs per month |
|
Detail Information |
|||
| Rated/Max. Power (KVA): | 2.8/3 | Phase No.s: | Triple-phase |
|---|---|---|---|
| AC Frequency (Hz): | 50 | AC Output Voltage (V): | 115/230 |
| Rated Current (A): | 24.4/12.2 | DC Output (V/A): | Terminal Post |
| Engine Model: | KA178F | Starting System: | Electric |
| Fuel Tank Capacity (L): | 15 | Net Weight (KGS): | 140 |
| Highlight: | 3kva Low Noise Small Diesel Generators,Commercial 3kva miniature diesel generator,Electric Starting System Small Diesel Generators |
||
Product Description
Commercial 3kva Low Noise Small Diesel Generators Electric Starting System
All generators are equipped with original USA Kohler air-cooled petrol engines
Control Panel
All control units are set on one panel and Digital control panel is optional which will display the running data including output voltage, current, running hours etc.
Low oil alarm system
Before the fuel level drops to the limited level, the generator will stop automatically and it can be restarted only if the fuel is refilled.
Application of AVR
The AVR (Automatic Voltage Regulator) can ensure the output to be smooth and provide reasonable protection against the overload of the generator to avoid damage the set.
Advanced Alternator
100% copper wire, waveform distortion is kept at a Min. level and the output is stable.
ATS System
The ATS system (Automatic Transfer Switch) will give commands to start the genset automatically if the Mains Power fails or the voltage & frequency of the mains power become abnormal. As the mains power is restored, ATS shifts the load back to the mains power and shuts down the genset.
