0.247L Displacement Air Cooled Diesel Engine With Recoil Start / Electric Satrt System
Product Details:
| Place of Origin: | Wuxi of China |
| Brand Name: | KAIAO |
| Certification: | CE |
| Model Number: | KA173F |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 units |
|---|---|
| Price: | US$148.FOB.Shanghai |
| Packaging Details: | Carton Parkage |
| Delivery Time: | 15 working days |
| Supply Ability: | 10000 units per month |
|
Detail Information |
|||
| Model: | KA173F | Type: | Single Cylinder Air-cooled Diesel Engine |
|---|---|---|---|
| Bore*Stroke(mm): | 73*59mm | Displacement(L): | 0.247L |
| Compression Ration: | 19 | Rate Power[KW: | 0 |
| Rate Speed(rpm): | 3000/3600rpm | Start System: | Recoil Start /Electric Satrt |
| Fuel Tank Capacity(L): | 2.5L | Application: | For Tillers And Cultivators Use |
| Highlight: | 0.247L Displacement Air Cooled Diesel Engine,Recoil Start Air Cooled Diesel Engine,Electric Satrt System Air Cooled Engine |
||
Product Description

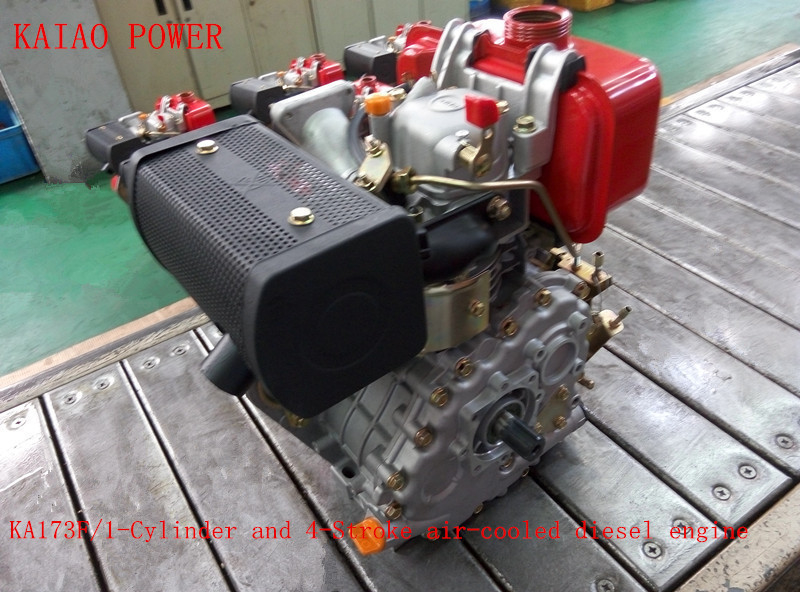

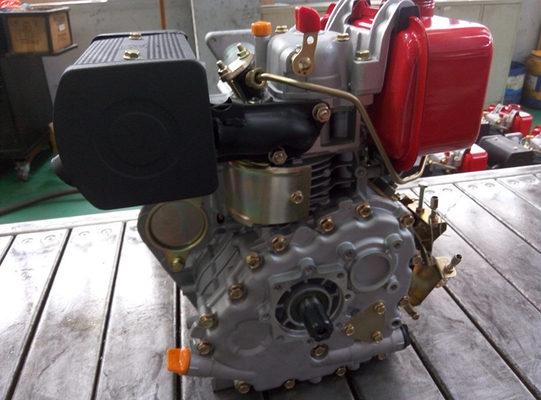

KA173F/Single Cylinder air-cooled diesel engine for mini-tillers use
Unique Driving System
Adopted designed precise gear driving & balance shaft system to ensure more excellent performance & stable than other makers
Perfect Direct Injection
To realize the ideal match between the combustion chamber and injection system, keep maximum power from every drop of diesel, it’s extraordinarily low fuel consumption & environmentally friendly engine.
Low Vibration & Low Noise
Vibration & Noise reduction is achieved through the adopt of precision balancers. It makes operation comfort even under long working hours.
Compact Design, Quick & Easy Start
With stronger but lightweight alloy used for main engine parts, extra tough crankshaft and overall compact structure, ensure powerful and simple to install and quick & easy to start.
Application:

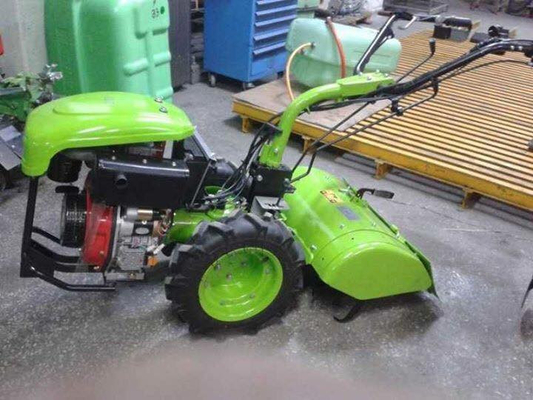

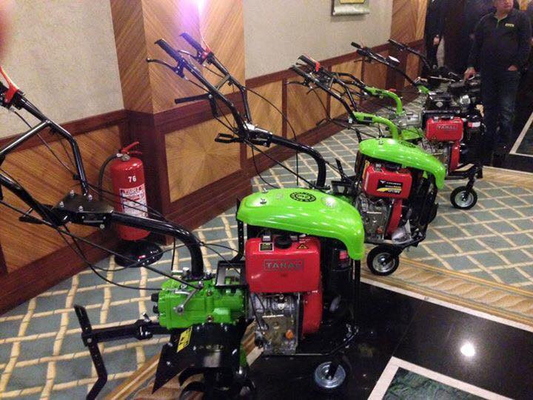

KAIAO air-cooled single cylinder engines could be assemble with Agricultural machines (such as Tillers), marine boats, generators & pump sets etc.
| Model | KA173F/air-cooled diesel engine unit |
| Rated output(HP/rpm) | 4.7HP/3000, 5.5HP/3600 |
| Rated output(KW/rpm) | 3.45KW/3000, 4.05KW/3600 |
| Engine type | Single-cylinder, vertical, four-stroke, air-cooled, direct injection |
| Cylinder Diameter*stroke(mm) | 73*59mm |
| Piston displacement (L) | 0.247L |
| Compression ratio | 19 |
| Max. no-load speed(r/min) | 108% of Rated rotary speed |
| Min. no-load speed(r/min) | 1300 |
| Lubrication system | Pressure splash complex Type |
| Engine starting system | Recoil starter or Electric starter |
| Output terminal rotation | AnticlockWise |
| Fuel oil model | Summer:0#, Winter:-10# |
| Fuel tank capacity (L) | 2.5L |
| Fuel consumption rate(g/kW.h) | 275/3000 280/3600 |
| Oil consumption rate(g/kW.h) | 4.08 |
| Oil grade | CD grade or SAE10W-30,15W-40 |
| Valve clearance(cold state) mm | 0.10-0.15 |
| Lube oil capacity (L) | 1.65 |
| Starting motor (V,kW) | 12V 0.8kW |
| Charging generator(V,A) | 12V 3A |
| Battery capacity(V,AH) | Above 12V-36AH |
| Dimension (L*W*H)(mm) | 440*390*470mm |
