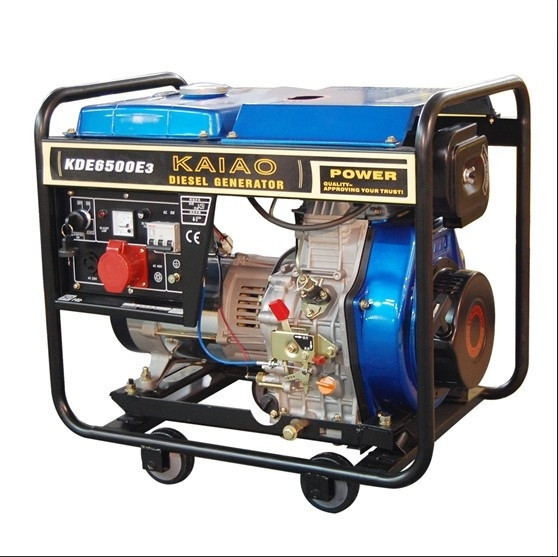

5KVA Air Cooled Diesel Generator Set With 3000/3600rpm Engine Speed Rpm
Product Details:
| Place of Origin: | Wuxi of China |
| Brand Name: | KAIAO |
| Certification: | CE |
| Model Number: | KDE6500E3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 uints |
|---|---|
| Price: | US$383.FOB.Shanghai |
| Packaging Details: | Carton Packages |
| Delivery Time: | 20-25 days working days |
| Supply Ability: | 10000 sets per month |
|
Detail Information |
|||
| Model: | KDE6500E3/Open-frame | Frequency(HZ): | 50/60hz |
|---|---|---|---|
| Rated Power(KVA): | 5.5KVA | Max Power(KVA): | 6KVA |
| Voltgae(V): | 230/400V | Current(A): | 7.9A |
| Engine Speed(rpm): | 3000/3600rpm | Phase: | AC Three Phase |
| Power Factor: | 0.8 | Noise Level(dB(A): | 77dB(A) |
| Fuel Tank Capacity(L): | 12.5L | Engine Model: | KA186FA/Single Cylinder Air-cooled Diesel Engine |
| Weight（Kg）: | 100Kg | Dimension(L*W*H): | 760*515*710mm |
| Highlight: | Open 5KVA Air Cooled Diesel Generator Set,3600rpm Engine Single Cylinder Diesel Generator |
||
Product Description
KDE6500E3 AC Three Phase Open-frame air-cooled diesel generator set
50/60HZ Electric start
All generators are equipped with original USA Kohler air-cooled petrol engines
Control Panel
All control units are set on one panel and Digital control panel is optional which will display the running data including output voltage, current, running hours etc.
Low oil alarm system
Before the fuel level drops to the limited level, the generator will stop automatically and it can be restarted only if the fuel is refilled.
Application of AVR
The AVR (Automatic Voltage Regulator) can ensure the output to be smooth and provide reasonable protection against the overload of the generator to avoid damage the set.
Advanced Alternator
100% copper wire, waveform distortion is kept at a Min. level and the output is stable.
ATS System
The ATS system (Automatic Transfer Switch) will give commands to start the genset automatically if the Mains Power fails or the voltage & frequency of the mains power become abnormal. As the mains power is restored, ATS shifts the load back to the mains power and shuts down the genset.
