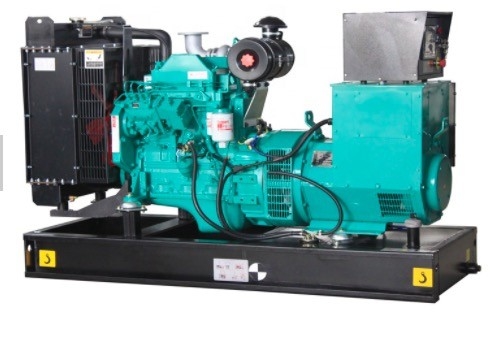

24kw Silent Type 30kva Small Kaiao Diesel Generator
Product Details:
| Place of Origin: | Wuxi of China |
| Brand Name: | KAIAO |
| Certification: | CE |
| Model Number: | KDE12T |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 sets |
|---|---|
| Price: | US$1680.FOB.Shanghai |
| Packaging Details: | Wooden Case |
| Delivery Time: | 25 working days |
| Supply Ability: | 10000 units |
|
Detail Information |
|||
| Model: | KDE12T/ 8KW Air-cooled Diesel Generator Set | Frequency(HZ): | 50/60HZ |
|---|---|---|---|
| Phase: | AC Single Phase | Power Factor: | 1 |
| Rated Power(KW): | 8.5KW | Standby Power(KW): | 9.5KW |
| Voltage(V): | 220/230V | Engine Model: | KA870F |
| Type: | 2-Cylinders Air-cooled Diesel Engine | Start System: | Electric Start |
| Structure: | Silent Type | Dimension(L*W*H): | 1180*720*820mm |
| Weight(Kg): | 245Kg | ||
| Highlight: | 24kw kaiao diesel generator,30kva kaiao diesel generator,kaiao silent type diesel generator |
||
Product Description
50/60HZ Small Diesel Generators For Home Backup Silent Diesel Generator
KDE12T/AC Single phase electric start silent diesel generator set
Double Cylinder air-cooeld diesel engine set
Main Parameters and Specifications
Engine Specification
|
Brand
|
KAIAO
|
|||
|
Model
|
4B3.9-G1
|
|||
|
Rated speed
|
1500rpm
|
|||
|
Prime Power
|
24KW/30KVA
|
|||
|
Standby Power
|
27KW/33.745KVA
|
|||
|
Lube oil capacity
|
9 L
|
|||
|
Bore (mm) x Stroke (mm)
|
102*120
|
|||
|
Compression ratio
|
16.5:1
|
|||
|
Displacement (litre)
|
3.92L
|
|||
|
Configuration
|
4 in line ,four-stroke, Turbocharged, Charge Air Cooled
|
|||
|
Cooling
|
Liquid Cooled
|
|||
|
Governor type
|
Electronic
|
|||
|
Starting voltage
|
24 Volts DC
|
|||
Control Panel
All control units are set on one panel and Digital control panel is optional which will display the running data including output voltage, current, running hours etc.
Low oil alarm system
Before the fuel level drops to the limited level, the generator will stop automatically and it can be restarted only if the fuel is refilled.
Advanced Alternator
100% copper wire, waveform distortion is kept at a Min. level and the output is stable.
ATS System
The ATS system (Automatic Transfer Switch) will give commands to start the genset automatically if the Mains Power fails or the voltage & frequency of the mains power become abnormal. As the mains power is restored, ATS shifts the load back to the mains power and shuts down the genset.
Integrated cabinet ensures the set running silently
Electric start system ensures rapid starts of the set
