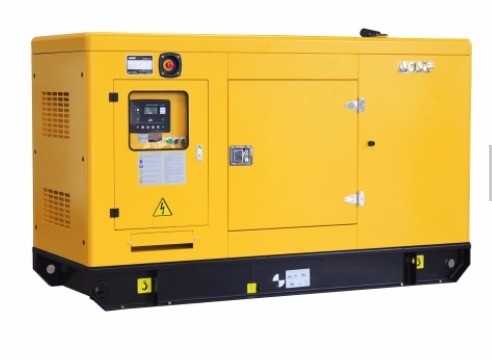

20kva Yellow 230v Small Silent Diesel Generator
Product Details:
| Place of Origin: | Wuxi of China |
| Brand Name: | KAIAO |
| Certification: | CE |
| Model Number: | KDE8600T3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 Units |
|---|---|
| Price: | US$600.FOB.Shanghai |
| Packaging Details: | Carton Package |
| Delivery Time: | 25 working days |
| Supply Ability: | 10000 units per month |
|
Detail Information |
|||
| Model: | KDE8600T3/8KVA Silent Diesel Genertaor Set | Rated Power(KVA): | 7.5KVA |
|---|---|---|---|
| Standby Power(KVA): | 8.0KVA | Voltage(V): | 230/400V |
| Power Factor: | 0.8 | Speed: | 3000/3600rpm |
| Structure: | Silent Type | Engine Model: | KA188F/ Single Cylinder Air-cooled Diesel Engine |
| Highlight: | 20kva small silent diesel generator,230v 20kva diesel generator,230v small silent diesel generator |
||
Product Description
50HZ Triple Phase Small Diesel Generators For Home Backup , 8kva Silent Diesel Generator
Electric start air-cooled diesel engine with ATS device
50HZ/60HZ
Silent diesel generator
| Power Range | 10KW |
| Voltage | 220/380V,230/400V,110/220V,240/415V, 254/440V, 277/480V |
| Engine | with Cummins engine,with Perkins engine,or Doosan SDEC SME Wandi etc. |
| Alternator | Leroy somer,Stamford,Marathon,Aosif |
| Controller | Deepsea,Comap |
| Circuit Breaker | ABB/SCHNEIDER |
| Type | Open/Silent |
| Fuel Tank | Base Tank,External Daily Fuel Tank |
| Optional supporting products | Moveable/Trailer Type Diesel Generator /Synchronization System Automatic Transfer Switch /Dummy Load Day Tank |
AOSIF Generator Supply Scope
| 1. Engine: | Brand-new engine. | |||||||||||
| 2. Alternator: | Brand new brushless alternator, single bearing, IP23, H insulation class. | |||||||||||
| 3. Base Frame: | Heavy duty steel channel base frame. | |||||||||||
| 4. Radiator: | With safety guard. | |||||||||||
| 5. Vibration Damper | Vibration damper between Engine/Alternator and base frame | |||||||||||
| 6. Breaker: | 3-pole output manual circuit breaker as standard, 4 poles for option | |||||||||||
| 7. Controller: | DSE6120, DSE7320, DSE8610 and other deepsea models, Comap MRS10, MRS16, AMF20, AMF25 for option. | |||||||||||
| 8. Silencer: | Heavy duty industrial type silencer with flexible bellow,elbow. | |||||||||||
| 9. Battery: | Varta Brand,high capacity sealed maintenance free battery c/w battery cables. | |||||||||||
| 10. Fuel Tank: | 8 hours base fuel tank | |||||||||||
| 11. Tool Kits & Manuals: | Standard tool kits and complete operation/maintenance/manuals for Generator/Engine/Alternator/control panel, etc. |
|||||||||||
Control Panel
All control units are set on one panel and Digital control panel is optional which will display the running data including output voltage, current, running hours etc.
Low oil alarm system
Before the fuel level drops to the limited level, the generator will stop automatically and it can be restarted only if the fuel is refilled.
Voltage Protection
New Automatic voltage regulator ensures steady voltage output ,with over loading protect function.
ATS System
The ATS system (Automatic Transfer Switch) will give commands to start the genset automatically if the Mains Power fails or the voltage & frequency of the mains power become abnormal. As the mains power is restored, ATS shifts the load back to the mains power and shuts down the genset.
