Key Start Open Frame Small Diesel Generators Set , Single Phase Diesel Generator
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | KAIAO |
| Certification: | CE |
| Model Number: | KDE6500E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 sets |
|---|---|
| Price: | USD381.FOB.SHANGHAI |
| Packaging Details: | CARTON |
| Delivery Time: | 20days |
| Supply Ability: | 10000 SETS PER MONTH |
|
Detail Information |
|||
| MODEL: | KDE6500E/5KW Diesel Generator Set | FREQUENCY: | 50/60HZ |
|---|---|---|---|
| Structure: | Open-frame Structure | Prime Power: | 4.5KW |
| Max Power: | 5KW | Phase: | AC Single Phase |
| Highlight: | miniature Diesel Generators Set,compact Single Phase Diesel Generator |
||
Product Description
Key Start Open Frame Small Diesel Generators Set , Single Phase Diesel Generator
| Add:No.8District CHudai Industrial Area,Wuxi.China.Code:214161 | ||||||||
| Quotation Sheet | ||||||||
| Model:KDE6500E/AC Single phase 5KW key start diesel generator set | ||||||||
| Frequency: | 50HZ | |||||||
| Rate Power(KW): | 4.5KW | |||||||
| Max.power(KW): | 5.0KW | |||||||
| Voltage(V): | 240V | |||||||
| Engine Speed(rpm): | 3000rpm | |||||||
| Phase: | AC Single Phase | |||||||
| Power factor: | 1 | |||||||
| Excitation system: | Self-excited constant voltage | |||||||
| Noise level(at 7m): | 75-77dB(A) | |||||||
| Fuel Tank Capacity: | 12.5L | |||||||
| Structure: | Open- Structure | |||||||
| Panel: | Ordinary Panel Board | |||||||
| DC 12V output: | Terminal Post | |||||||
| Net weight: | 100Kg | |||||||
| Dimension(L*W*H): | 760*515*710mm | |||||||
| Engine Model: | KA186F/8HP single cylinder air-cooled diesel engine set | |||||||
| Engine Type: | Single Cylinder and four stroke air-cooled diesel engine | |||||||
| Bore*Stroke(mm): | 86*72mm | |||||||
| Displacement(L): | 0.406L | |||||||
| Rated Power: | Key Start and recoil start | |||||||
| Quantity: | 68 sets | |||||||
| Unit Price: | US$380.FOB.Shanghai | |||||||
| Alternator: | 100% Copper | |||||||
| Note: | with four wheels,17Ah Battery | |||||||
| Payment: | T/T | |||||||
| Warranty: | 12 months | |||||||
| Delivery Time: | 20-25 days | |||||||

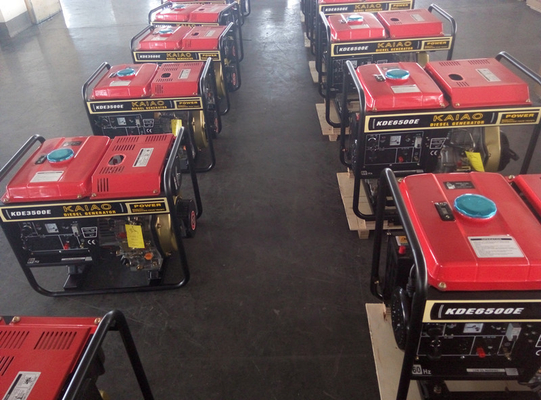

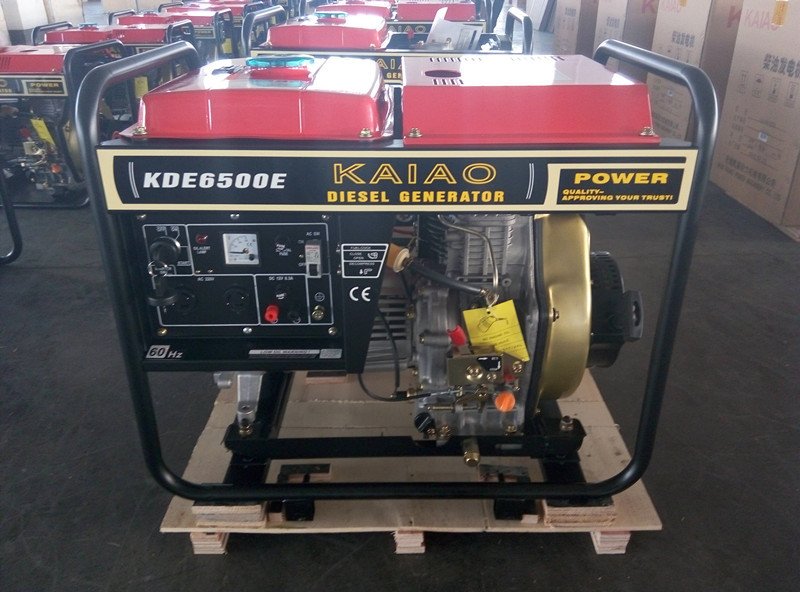

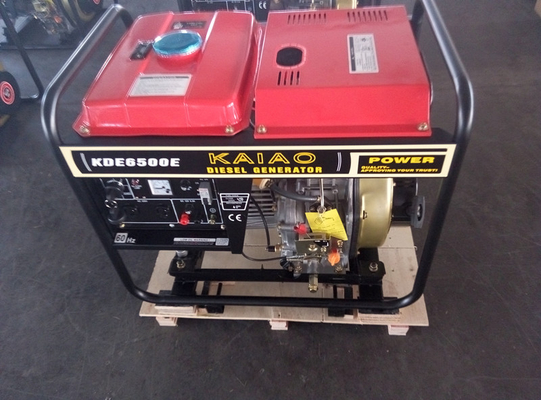

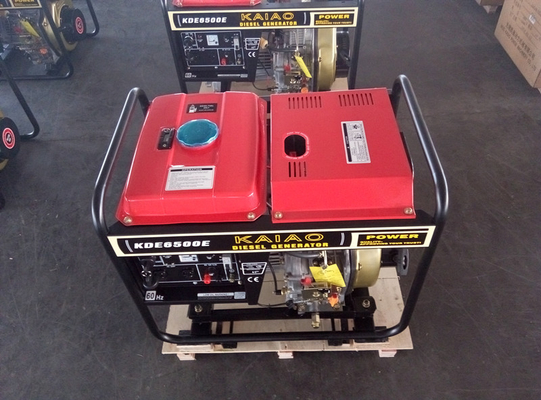

| Photo | ||||||||
