5KVA Open Frame Small Diesel Generators 100% Copper Wire For Home Use
Product Details:
| Place of Origin: | Wuxi of China |
| Brand Name: | KAIAO |
| Certification: | CE |
| Model Number: | KDE6500E3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 units |
|---|---|
| Price: | US$383.FOB.Shanghai |
| Packaging Details: | Carton Package |
| Delivery Time: | 25 working days |
| Supply Ability: | 10000 units |
|
Detail Information |
|||
| Model: | KDE6500E3/ 5KVA Diesel Generator Set | Frequency(HZ): | 50/60HZ |
|---|---|---|---|
| Phase: | AC Three Phase | Rated Power(KVA): | 5.5KVA |
| Sandby Power(KVA): | 6.0KVA | Voltage(V): | 230/400V |
| Power Factor: | 0.8 | Engine Speed: | 3000/3600rpm |
| Excitation System: | With AVR Self-excited Constant Voltage | Noise Level: | 77 DB(A) |
| Fuel Tank Capacity(L): | 12.5L | Structure: | Open-frame |
| Dimension: | 760*515*710mm | Weight: | 100Kg |
| Engine Model: | KA186FA/ Single Cylinder Air-cooled Diesel Engine | ||
| Highlight: | Open Frame Small Diesel Generators,Home 5KVA Small Diesel Generators,100% Copper Wire Small Diesel Generators |
||
Product Description

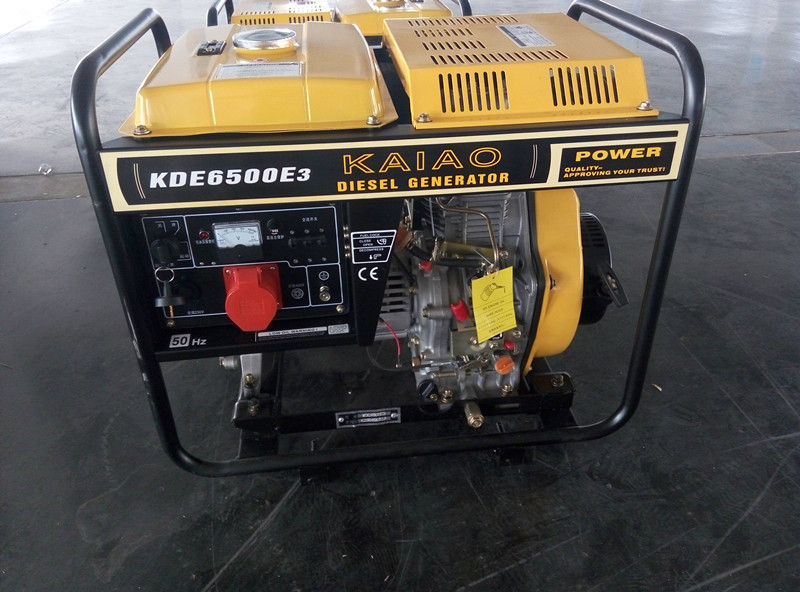

KDE6500E3/ AC Three Phase 5KVA Open-frame diesel generator unit
50/60HZ Electric start and Hand start air-cooled diesel engine
Control Panel
All control units are set on one panel and Digital control panel is optional which will display the running data including output voltage, current, running hours etc.
Low oil alarm system
Before the fuel level drops to the limited level, the generator will stop automatically and it can be restarted only if the fuel is refilled.
Application of AVR
The AVR (Automatic Voltage Regulator) can ensure the output to be smooth and provide reasonable protection against the overload of the generator to avoid damage the set.
Advanced Alternator
100% copper wire, waveform distortion is kept at a Min. level and the output is stable.
ATS System
The ATS system (Automatic Transfer Switch) will give commands to start the genset automatically if the Mains Power fails or the voltage & frequency of the mains power become abnormal. As the mains power is restored, ATS shifts the load back to the mains power and shuts down the genset.
